Cylinders

Threaded Body Cylinder

• Manifold Mounted cylinders
• Standard Range : M20,M24,M30,M36,M45,M55,M65 & M80
• Male & Female piston endings available
• Stroke Range : 6,10,16,20,25,32 & 40mm
• Pressure Range : 1 - 30 Mpa

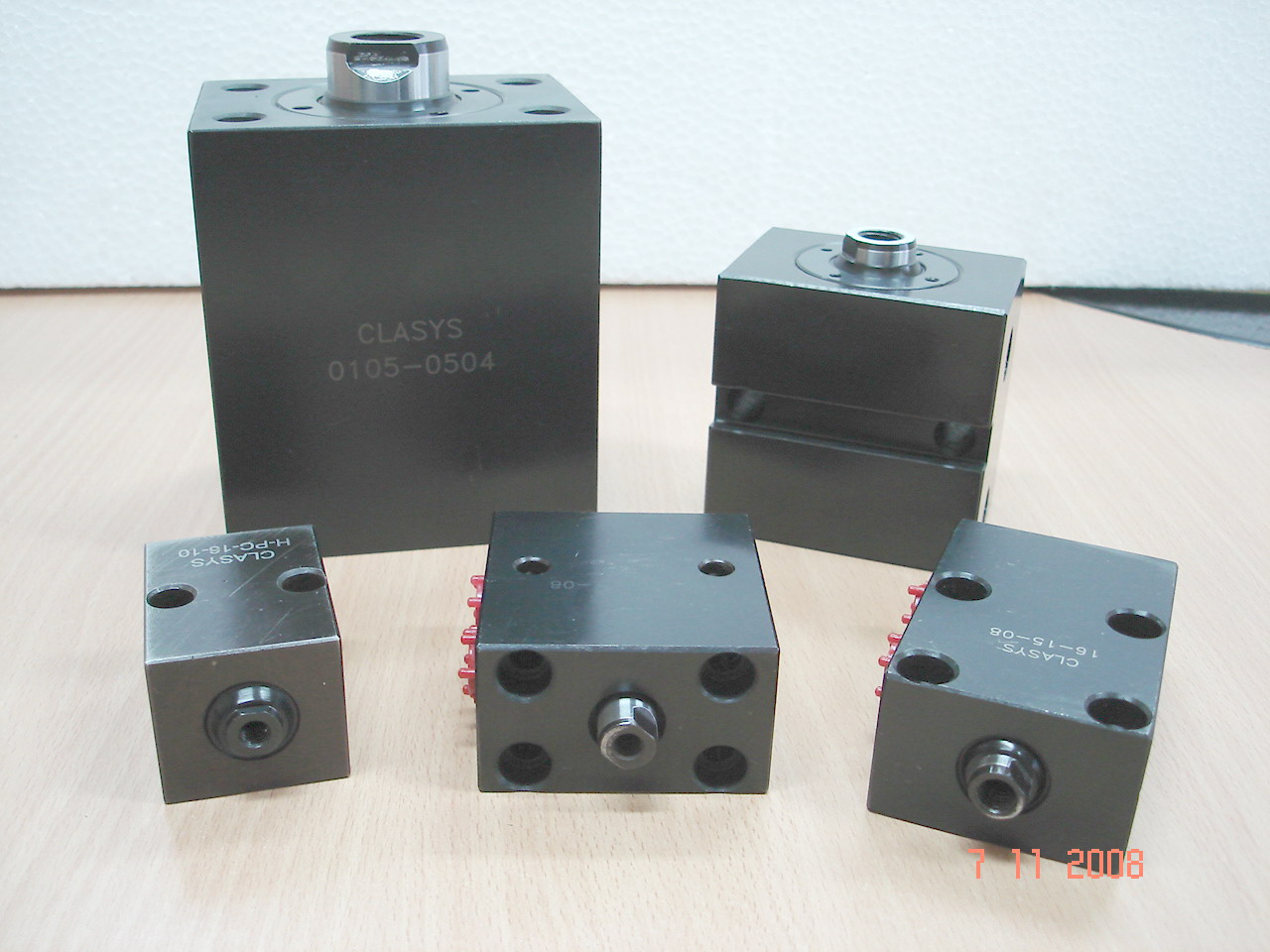

Block Cylinder

• Pusher Type Cylinders
• Sizes ranging from Ø20,25,32,42,50,63 with different strokes
• Male & Female threaded endings for piston available
• Pressure range- 1-30 Mpa
• Special bore and stroke sizes taken upon Customer request

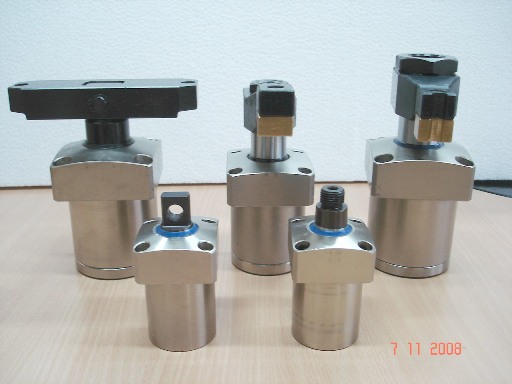

Swing Cylinder

• HORIZONTAL swing clamp cylinders
• Sizes ranging from Ø25,32,42,50,63 & 72
• Different type of Piston Endings allow for Single and Dual Clamp Loading
• Self Locking Taper for clamp arm
• Pressure Range: 1.5 to 12 Mpa
• Option for Internal Piping available
• Special bore and stroke sizes taken on customer request

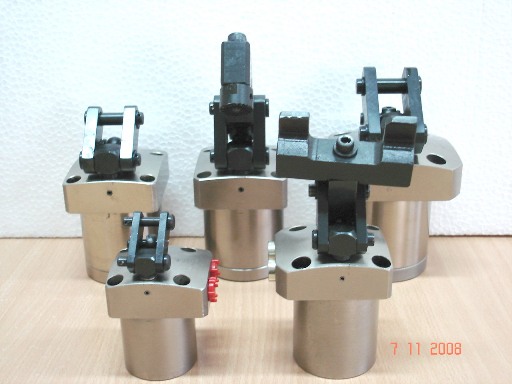

Link Clamp Cylinders

• Vertical Swing Type Cylinders
• Size range varying from Ø20,25,32,42,50 63,72,80 & 100
• Varied stroke range is available
• Pressure Range : 1 to 15 Mpa
• Option for Internal Piping available
• Special bore and stroke sizes taken on customer request

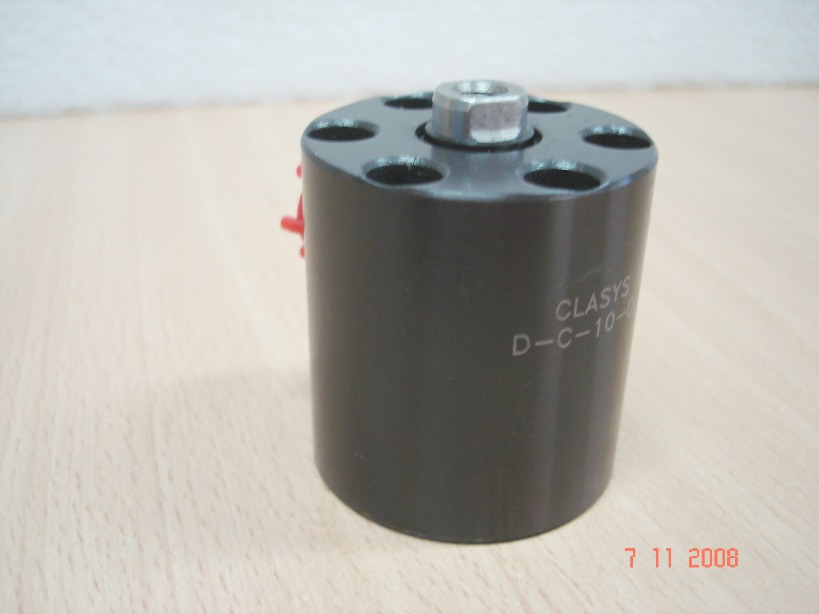

Compact Cylinders

• Compact Design
• Easy Mounting
• Double Acting
• Std Range : 45, 55, 65, 75, 95
• Pressure Range : 1 - 15 Mpa
• Stroke Range : 5-20 mm
